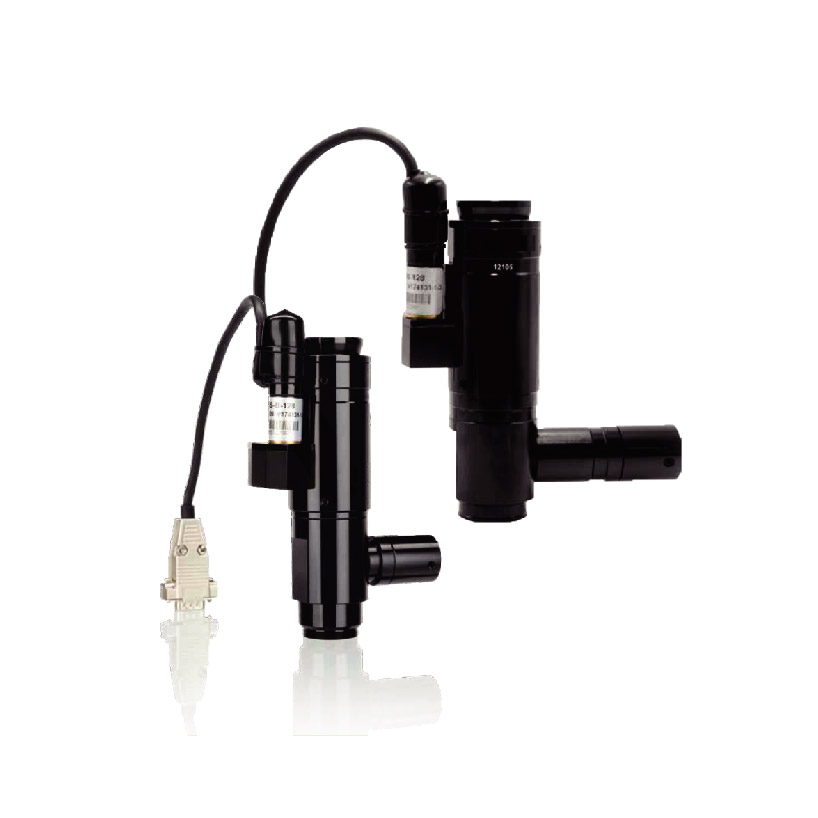

12.5X/8.0X/6.5X ZOOM LENS SERIES
12.5X 變倍鏡頭
| 產品型號 | HRZ-0575/HRZ-0575C HRZ-0575M/HRZ-0575MC | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 光學放大倍數 | 0.58X~7.5X | ||||||||||||||||
| 工作距離 | 84+2mm | ||||||||||||||||
| 光學倍率 | 0.58X | 0.6X | 1X | 1.5X | 2X | 2.5X | 3X | 3.5X | 4X | 4.5X | 5X | 5.5X | 6X | 6.5X | 7X | 7.5X | |
| 景深(mm) | 2.75 | 2.67 | 0.95 | 0.43 | 0.27 | 0.2 | 0.15 | 0.12 | 0.1 | 0.081 | 0.073 | 0.066 | 0.061 | 0.056 | 0.052 | 0.05 | |
| N.A. | 0.025 | 0.025 | 0.043 | 0.063 | 0.074 | 0.082 | 0.09 | 0.097 | 0.1 | 0.11 | 0.11 | 0.11 | 0.11 | 0.11 | 0.11 | 0.11 | |
| F.No. | 12.5 | 12.5 | 11.85 | 11.95 | 13.65 | 15.3 | 16.5 | 18.4 | 19.9 | 20.4 | 22.45 | 22.7 | 26.8 | 29.4 | 31.7 | 33.9 | |
| 分辨率(μm) | 13 | 13 | 7.8 | 5.3 | 4.53 | 4.09 | 3.73 | 3.46 | 3.36 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | 3.05 | |
| TV畸變 | 0.050% | 0.050% | 0.002% | 0.010% | 0.020% | 0.003% | 0.020% | 0.020% | 0.018% | 0.020% | 0.010% | 0.010% | 0.001% | 0.010% | 0.005% | 0.005% | |
| 2/3"視野大小(mm) | 對角 | 18.97 | 18.33 | 11 | 7.33 | 5.5 | 4.4 | 3.67 | 3.14 | 2.75 | 2.44 | 2.2 | 2 | 1.83 | 1.69 | 1.57 | 1.47 |
| 水平 | 15.17 | 14.67 | 8.8 | 5.87 | 4.4 | 3.52 | 2.93 | 2.51 | 2.2 | 1.96 | 1.76 | 1.6 | 1.47 | 1.35 | 1.26 | 1.17 | |
| 垂直 | 11.38 | 11 | 6.6 | 4.4 | 3.3 | 2.64 | 2.2 | 1.89 | 1.65 | 1.47 | 1.32 | 1.2 | 1.1 | 1.02 | 0.94 | 0.88 | |
| 最大兼容Sensor | 2/3" | ||||||||||||||||
| 接口 | C型 | ||||||||||||||||
8.0X 變倍鏡頭
| 產品型號 | HRZ-0650/HRZ-0650C HRZ-0650M/HRZ-0650MC | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 光學放大倍數 | 0.6X~5.0X | |||||||||||
| 工作距離 | 84+2mm | |||||||||||
| 光學倍率 | 0.6X | 1.0X | 1.5X | 2.0X | 2.5X | 2.5X | 3X | 3.5X | 4X | 4.5X | 5.0X | |
| 景深(mm) | 2.67 | 0.95 | 0.43 | 0.27 | 0.20 | 0.2 | 0.15 | 0.12 | 0.10 | 0.081 | 0.073 | |
| N.A. | 0.025 | 0.043 | 0.063 | 0.074 | 0.082 | 0.082 | 0.09 | 0.097 | 0.100 | 0.11 | 0.11 | |
| F.No. | 12.5 | 11.85 | 11.95 | 13.65 | 15.30 | 15.30 | 16.50 | 18.4 | 19.90 | 20.4 | 22.45 | |
| 分辨率(μm) | 13.00 | 7.8 | 5.30 | 4.53 | 4.09 | 4.09 | 3.73 | 3.46 | 3.36 | 3.05 | 3.05 | |
| TV畸變 | 0.050% | 0.002% | 0.010% | 0.020% | 0.003% | 0.003% | 0.020% | 0.020% | 0.018% | 0.020% | 0.010% | |
| 2/3"視野大小(mm) | 對角 | 18.33 | 11.00 | 7.33 | 5.50 | 4.40 | 4.4 | 3.67 | 3.14 | 2.75 | 2.44 | 2.2 |
| 水平 | 14.67 | 8.80 | 5.87 | 4.40 | 3.52 | 3.52 | 2.93 | 2.51 | 2.2 | 1.96 | 1.76 | |
| 垂直 | 11.00 | 6.60 | 6.6 | 4.40 | 3.3 | 2.64 | 2.2 | 1.89 | 1.65 | 1.47 | 1.32 | |
| 最大兼容Sensor | 2/3" | |||||||||||
| 接口 | C型 | |||||||||||
| 產品型號 | HRZ-0650/HRZ-0650C HRZ-0650M/HRZ-0650MC | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 光學放大倍數 | 0.6X~5.0X | ||||||||
| 工作距離 | 84+2mm | ||||||||
| 光學倍率 | 0.7X | 10.X | 2.0X | 2.5X | 3.0X | 3.5X | 4.0X | 4.5X | |
| 景深(mm) | 1.9 | 0.952 | 0.29 | 0.23 | 0.16 | 0.13 | 0.12 | 0.15 | |
| N.A. | 0.03 | 0.042 | 0.07 | 0.07 | 0.085 | 0.085 | 0.085 | 0.085 | |
| F.No. | 11.6 | 12.1 | 14.2 | 17.8 | 17.6 | 20.5 | 23.5 | 26.5 | |
| 分辨率(μm) | 11.18 | 7.99 | 4.79 | 4.79 | 3.95 | 3.95 | 3.95 | 3.95 | |
| TV畸變 | 0.019% | 0.035% | 0.003% | 0.004% | 0.001% | 0.001% | 0.002% | 0.002% | |
| 2/3"視野大小(mm) | 對角 | 15.71x12.57x9.43 | 11.00x8.80x6.60 | 5.50x4.40x3.30 | 4.40x3.52x2.64 | 3.67x2.93x2.20 | 3.14x2.21x1.89 | 2.75x2.20x1.65 | 2.44x1.96x1.47 |
| 水平 | 11.43x9.14x6.86 | 8.00x6.40x4.80 | 4.00x3.20x2.40 | 3.20x2.56x1.92 | 2.67x2.13x1.60 | 2.29x1.83x1.37 | 2.00x1.60x1.20 | 1.78x1.42x1.07 | |
| 垂直 | 8.57x6.86x5.14 | 6.00x4.80x3.60 | 3.00x2.40x1.80 | 2.40x1.92x1.44 | 2.00x1.60x1.20 | 1.71x1.37x1.03 | 1.50x1.20x0.90 | 1.33x1.07x0.80 | |
| 最大兼容Sensor | 2/3" | ||||||||
| 接口 | C型 | ||||||||
