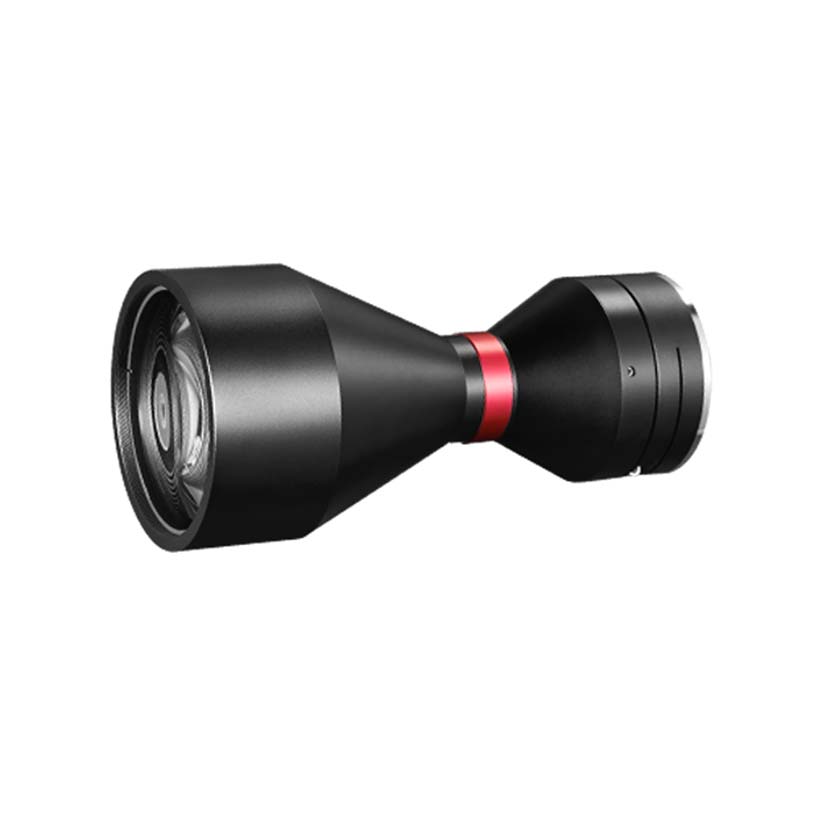

HRDTCM175系列(支援1.75”以下)
HRDTCM175系列
| 產品型號 Model No | 倍率 Mag. | 工作距離 WD(mm) | MTF>0.3 (LP/mm) | F# | 景深 DoF(mm) | 鏡頭總長 Length(mm) | 支援尺寸 Sensor Size | 接口 Mount | 重量 Weight(g) | 晶片大小 Sensor Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| HRDTCM175-300-AL | 0.097 | 465 | >105 | 8.5 | ±68@F16 | 704.3 | 1.75" | M42/M58 | 47.1 | 29 |
| HRDTCM175-258-AL | 0.112 | 338 | >130 | 6.8 | ±50.7@F16 | 501.2 | 1.75" | M42/M58 | 24.7 | 29 |
| HRDTCM175-240H-AL | 0.121 | 410 | >125 | 6.8 | ±43.7@F16 | 625.8 | 1.75" | M42/M58 | 19.6 | 29 |
| HRDTCM175-216-AL | 0.134 | 372 | >125 | 6.8 | ±35.6@F16 | 579.9 | 1.75" | M42/M58 | 14.3 | 29 |
| HRDTCM175-190H-AL | 0.153 | 330 | >135 | 6.8 | ±27.3@F16 | 484.5 | 1.75" | M42/M58 | 10.1 | 29 |
| HRDTCM175-170-AL | 0.171 | 318 | >125 | 6.8 | ±21.9@F16 | 457.2 | 1.75" | M42/M58 | 7 | 29 |
| HRDTCM175-150-AL | 0.193 | 300 | >90 | 9.7 | ±21.5@F20 | 395.2 | 1.75" | M42/M58 | 6.2 | 29 |
| HRDTCM175-136-AL | 0.213 | 288 | >125 | 6.8 | ±14.1@F16 | 425.8 | 1.75" | M42/M58 | 4.7 | 29 |
| HRDTCM175-120H-AL | 0.242 | 273 | >130 | 6.8 | ±11.0@F16 | 352.6 | 1.75" | M42/M58 | 4.7 | 29 |
| HRDTCM175-110-AL | 0.264 | 263 | >120 | 6.8 | ±9.2@F16 | 340.9 | 1.75" | M42/M58 | 3.2 | 29 |
| HRDTCM175-100H-AL | 0.29 | 238 | >132 | 6.8 | ±7.6@F16 | 331 | 1.75" | M42/M58 | 3.6 | 29 |
| HRDTCM175-90-AL | 0.322 | 208 | >100 | 8.5 | ±6.1@F16 | 288.3 | 1.75" | M42/M58 | 2.2 | 29 |
| HRDTCM175-80H-AL | 0.363 | 228 | >130 | 6.8 | ±4.9@F16 | 253.3 | 1.75" | M42/M58 | 2.4 | 29 |
| HRDTCM175-72-AL | 0.403 | 178 | >105 | 8.5 | ±3.9@F16 | 263.3 | 1.75" | M42/M58 | 1.6 | 29 |
| HRDTCM175-64H-AL | 0.453 | 158 | >100 | 8.5 | ±3.1@F16 | 243.3 | 1.75" | M42/M58 | 1.3 | 29 |
| HRDTCM175-56-AL | 0.518 | 138 | >85 | 9.7 | ±3.0@F20 | 230.8 | 1.75" | M42/M58 | 1.2 | 29 |
| HRDTCM175-48-AL | 0.604 | 128 | >70 | 11.3 | ±2.2@F20 | 208.3 | 1.75" | M42/M58 | 1 | 29 |
| HRDTCM175-42-AL | 0.69 | 118 | >70 | 11.4 | ±1.6@F20 | 194.8 | 1.75" | M42/M58 | 0.9 | 29 |
| HRDTCM175-36-AL | 0.806 | 110 | >60 | 13.5 | ±1.2@F20 | 209.3 | 1.75" | M42/M58 | 1 | 29 |
| HRDTCM175-26-AL | 1.115 | 73 | >50 | 15 | ±0.6@F20 | 189.2 | 1.75" | M42/M58 | 0.8 | 29 |
