平板光源
產品特點
| 最大發光面積 | 2.1M x 1.4M | 均勻度 | >95% | 紅外光 | V | 高亮度 | V |
|---|---|---|---|---|---|---|---|
| 最薄厚度 | 7mm | 控制器級數 | 999 | 可見光 | V | 可定制 | V |

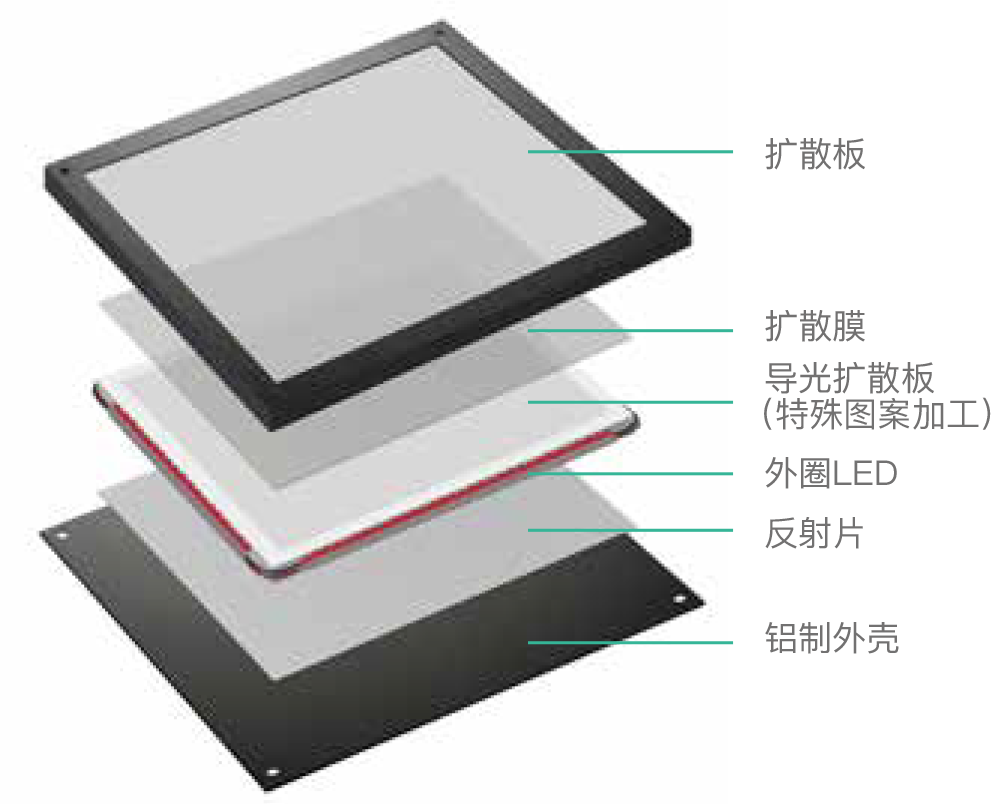

光源構造示意圖

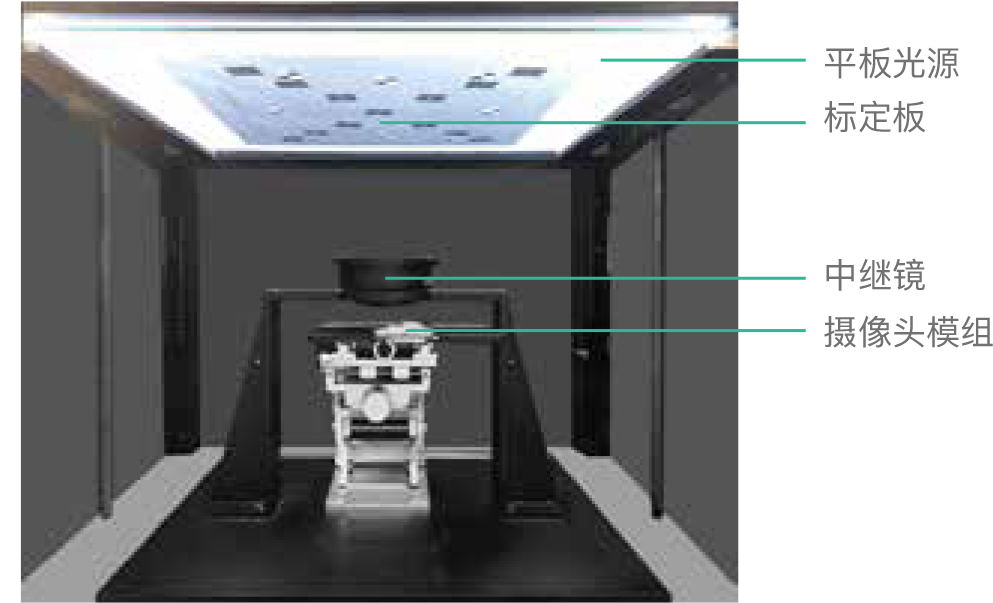

檢測台架
光源規格表
| 形狀 | 型號 | LxWxH (mm) | 發光面積 AxB(mm) | 白光 | 近紅外 | 備註 | |||
|---|---|---|---|---|---|---|---|---|---|
| 色溫(K) | 照度(lux) | 均勻度 | 波段(nm) | 強度 (uw/m') | |||||
| 正方形 | HR-FLB5050-D65 | 71x57x12 | 50x50 | 6500 | 15000 | >95% | - | ||
| HR-FLB8080-D65 | 88x88x15 | 80x80 | 5500 | 3000 | >90% | - | |||
| HR-FLB100100-D65 | 135x114x18.5 | 100x100 | 6500 | 5000 | >95% | - | |||
| HR-FLB100100-C3 | 133.36x108x20 | 100x100 | 5500 | 5000 | >90% | 850/940 | 800 | - | |
| HR-FLB120120-D65 | 160x146*9 | 120x120 | 6500 | 15000 | >95% | - | |||
| HR-FLB200200-D65 | 235x214x20 | 200x200 | 6500 | 2000 | >90% | - | |||
| HRFLB200200-C4 | 235x222x20 | 200x200 | 2850/6500 | 2000 | >90% | 850/940 | 500 | - | |
| HR-FLB300300-51 | 314.09x334x20 | 300x300 | 5100 | 2000 | >90% | - | |||
| HR-FLB500500-55FS | 530x530x35 | 500x500 | 5500 | 80000 | >90% | - | |||
| HR-FLB600600-D65 | 620x620 | 600x600 | 6500 | 5000 | >90% | - | |||
| HR-FLB14001400-C3 | 1460x1460x50 | 1400x1400 | 5500 | 2000 | >90% | 850/940 | 800 | - | |
| 長方形 | HR-FLB11080 | 112x84x16 | 110x80 | 6500 | 35000 | >95% | - | ||
| HR-FLB315255 | 330x270x20 | 315x255 | 6500 | 15000 | >95% | - | |||
| HR-FLB450320 | 478x348x35 | 450x320 | 6500 | 10000 | >95% | - | |||
| HR-FLB620420 | 648x448x40 | 620x420 | 6500 | 3000 | >90% | - | |||
| HR-FLB810520 | 842x552x40 | 810x520 | 6500 | 800 | >90% | - | |||
| HR-850530-IR940 | 882x562x40 | 850x530 | - | - | >95% | 940 | 500 | - | |
| HR-FLB960780 | 1000x820x43.5 | 960x780 | 6500 | 3000 | >90% | - | |||
| HR-FLB1040780 | 1088x828x56 | 1040x780 | 6500 | 5000 | >90% | 850 | 500 | - | |
| HR-FLB1100650-C3 | 1130x680x40 | 1100x650 | 5500 | 2000 | >90% | 850/940 | 500 | - | |
| HR-FLB1100750-C3 | 1130x780x40 | 1100x750 | 5500 | 2000 | >90% | 850/940 | 500 | - | |
| HR-FLB1240900 | 1280x940x55 | 1240x900 | 6500 | 15000 | >95% | - | |||
| HR-FLB1289941 | 1337x989x40 | 1289x941 | 6500 | 10000 | >95% | - | |||
| HR-FLB13001100-C3 | 1330x1130x40 | 1300x1100 | 5500 | 2000 | >90% | 850/940 | 500 | - | |
