BACK LIGHT

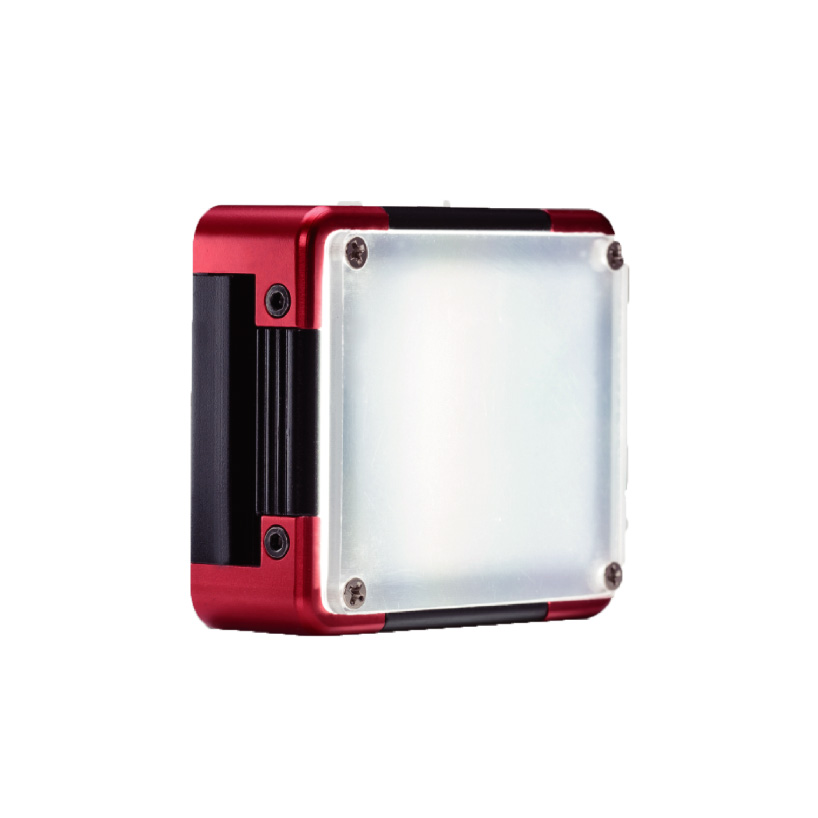

底部平行背光源 HRFQP2
-
尺寸量測
-
透射式有無檢測
-
光源平行度要求的場合
-
輸入電壓 DC 24V
-
基本光色 W/R/G/B
-
特殊光色 UV(405, 385, 365) IR(850, 940)
產品型號 | 發光面 (mm) | 功率 (紅) (W) | 功率 (白藍綠) (W) | 尺寸 (長X寬X高) (mm) | 重量 (g) |
|---|---|---|---|---|---|
HRFQP2-63X60 | 63X60 | 4.1 | 5.2 | 77X74X20 | 150 |
HRFQP2-83X75 | 83X75 | 5.5 | 5.1 | 97X89X20 | 210 |
HRFQP2-100X100 | 100X100 | 9.5 | 10 | 114X114X20 | 285 |
HRFQP2-140X105 | 140X105 | 13.8 | 13.9 | 154X119X20 | 390 |
HRFQP2-160X120 | 160X120 | 16.6 | 17.4 | 174X134X20 | 460 |
HRFQP2-200X50 | 200X50 | 9.9 | 20 | 214X64X20 | 475 |
HRFQP2-200X150 | 200X150 | 28.8 | 30.2 | 214X164X20 | 600 |
HRFQP2-224X170 | 224X170 | 30.2 | 33.7 | 238X184X20 | 690 |
HRFQP2-211X200 | 211X200 | 24.2 | 24.2 | 225X214X20 | 890 |
HRFQP2-27X27 | 27X27 | 1.1 | 2.8 | 41X41X20 | 60 |
HRFQP2-43X35 | 43X35 | 1.9 | 2.8 | 57X49X20 | 85 |
HRFQP2-51X51 | 51X51 | 4.2 | 4.4 | 65X65X20 | 115 |
